Descripción

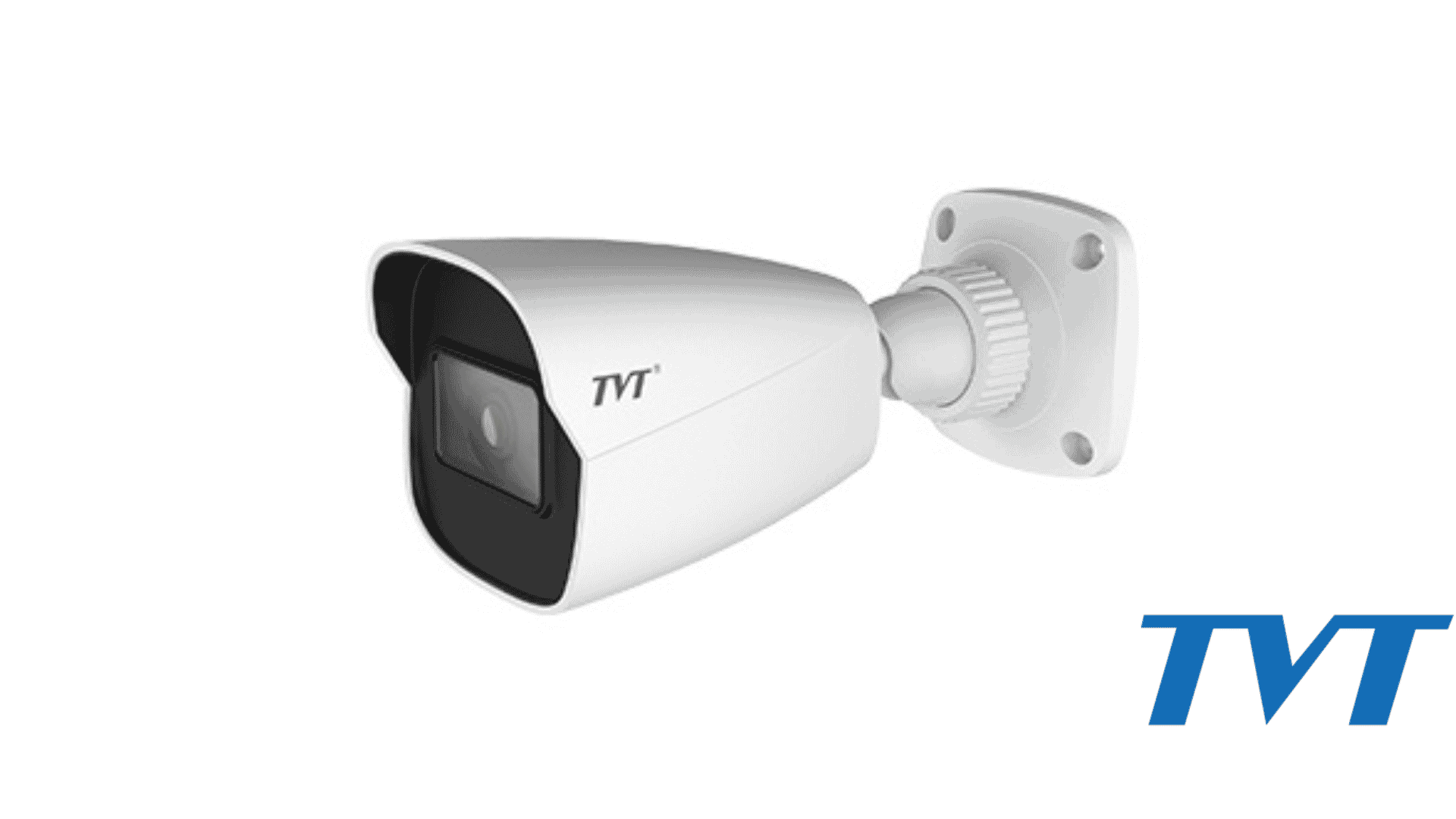

CAMARA TVT IP 2MP BULLET METAL SERIE E 2.8mm TD-94213B (D/PE/AR2)
Las cámaras bullet se utilizan para un uso exterior, ya que tienen una protección que las hacen resistentes a adversidades externas como la lluvia o el polvo. Aunque obviamente también pueden ser instaladas en el interior.
En este caso, este producto contiene varias tecnologias y utiliza la tecnología IP para su funcionamiento, con un lente de 2.8mm para manejar una visión de 90 grados aprox.
Esta camara de seguridad, tiene la particularidad de manejar varias tecnologias de deteccion, entre ellas se encuentran: Proteccion de perimetro, estadisticas con heat map y target counting, deteccion de cambio de escena, deteccion de rostros, objetos abandonados, entre otros…
Por otro lado, las cámara tipo bullet suelen apuntar a una única dirección fija, otro de los motivos por los que se suelen instalar más bien en el exterior y espacios abiertos. Pudiéndose colocar tanto en techos como en paredes.
| Model | TD-9421E3B |
| Camera | |
| Image Sensor | 1 / 2.8″ CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.005 lux@F1.6,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 mm@F1.6, horizontal FoV: 108°; vertical FoV: 75.3°; diagonal FoV:115.2° |
| 3.6 mm@F1.6, horizontal FoV: 89°; vertical FoV: 57.8°; diagonal FoV:96.8° | |
| Focus | Fixed |
| Lens Mount | M12 |
| Day& Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
| Image | |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 |
| Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |
| Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz:1080P/720P(1 ~ 30fps ); 50Hz:1080P / 720P( 1 ~ 25fps ) |
| Sub Stream | 60Hz:720P/D1/CIF (1~30fps); |
| 50Hz:720P/D1/CIF (1~25fps) | |
| Third Stream | 60Hz:D1/CIF /480×240 (1~30fps); 50Hz:D1/CIF/480×240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 6 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ 45 |
| Video Output | No |
| Audio | 1CH audio input |
| Storage | Built-in micro SD card slot; up to 256GB |
| Reset | Yes |
| Alarm | No |
| Intelligent Analytics (Smart Events) | |
| Perimeter Protection | Line crossing, intrusion (human/motor vehicle/non-motor vehicle classification) |
| Target Counting | Line crossing human/motor vehicle/non-motor vehicle counting |
| Exception Detection | Scene change, video blur and video color cast detection |
| Face Detection | Face detection and face capture |
| Functions | |
| Remote Monitoring | Web browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, FTP, PPPoE, DDNS, SMTP,SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, SD card error, SD card full |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction |
| PoE | Yes , IEEE802.3af |
| IR Distance | 20 ~ 30 m |
| Ingress Protection | IP 67 |
| Others | |
| Power Supply | DC12V/PoE |
| Power Consumption | < 6.5W |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F) |
| Humidity: less than 95 % (non-condensing) | |
| Dimensions ( mm ) | 167.5 x 74.5 x 74.5 |
| Weight ( net ) | Approx. 0.42KG |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
