Descripción

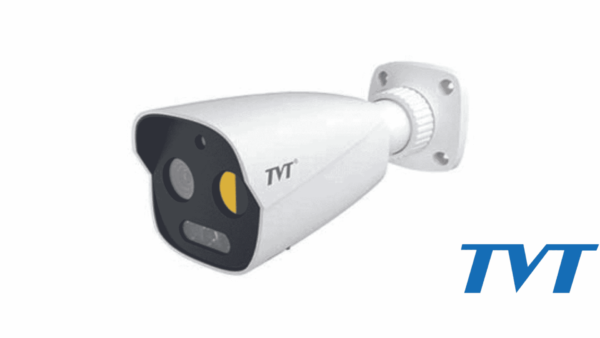

CAMARA TVT IP BULLET TERMICA+OPTICA 5MP TD-5422E1-VT(3/PE)
Las cámaras bullet se utilizan para un uso exterior, ya que tienen una protección que las hacen resistentes a adversidades externas como la lluvia o el polvo. Aunque obviamente también pueden ser instaladas en el interior.
En este caso, este producto maneja la tecnología IP para su funcionamiento, con un lente de 2.8mm para manejar una visión de 90 grados aprox.
Por otro lado, las cámara tipo bullet suelen apuntar a una única dirección fija, otro de los motivos por los que se suelen instalar más bien en el exterior y espacios abiertos. Pudiéndose colocar tanto en techos como en paredes.
Una cámara termográfica (o cámara térmica) es un dispositivo que mide la temperatura y ofrece una imagen térmica de los objetos, sin necesidad de contacto, a partir de las emisiones de radiación infrarroja de estos. Los objetos emiten una cantidad de radiación infrarroja en función de su temperatura.
| Model Specifications | TD-5422E1-VT | |
| Thermal Module | ||
| Detector Type | 12µm 256×192 Vanadium oxide uncooled focal plane detector | |
| Response Waveband | 8µm-14µm | |
| NETD | ≤50mK(@25°C, F#=1.0) | |
| IRIS Type | Fixed Iris | |
| Lens | 3.2mm@F1.1 | 7mm@F1.0 |
| Field of View(H×V) | 56°×42.2° | 24.8°×18.7° |
| Min. Focusing Distance | 0.5 m | 1.1m |
| Color Palettes | Black hot, White hot,iron oxide red, etc. | |
| DRI Distance Human (0.75m) | Detection: 133m(436ft) Recognition: 33m(108ft) Identification:17m(56ft) | Detection: 292m(958ft) Recognition: 73m(240ft) Identification:36m(118ft) |
| DRI Distance Vehicle (2.3m) | Detection: 409m (1342ft) Recognition: 102m(335ft) Identification:51m(167ft) | Detection: 894m(2933ft) Recognition: 224m(735ft) Identification:112m(367ft) |
| Visible Light Module | ||
| Image Sensor | 1/ 2.7″ CMOS | |
| Image Size | 2592 × 1944 | |
| Electronic Shutter | 1/3 s ~ 1 / 100000 s | |
| Iris Type | Fixed Iris | |
| Min. Illumination | 0.02 lux@F1.6,AGC ON; 0 lux with IR | |
| 0.03 lux@F2.0,AGC ON; 0 lux with IR | ||
| Lens | 4mm@F1.6 | 8mm@F2.0 |
| Field of View(H×V) | 81°×56.7° | 38°×27.5° |
| Wide Dynamic Range | 120dB | |
| BLC | Yes | |
| HLC | Yes | |
| Defog | Yes | |
| Digital NR | 2D/3D DNR | |
| Image | ||
| Video Compression | H.265 / H.264 / MJPEG | |
| H.264 Compression Standard | Baseline Profile / Main Profile / High Profile | |
| Bit Rate Type | VBR/CBR | |
| Bit Rate | 128Kbps~ 8Mbps | |
| Resolution | Thermal : 256 × 192 | |
| Optical: 5MP ( 2592 × 1944 ), 4MP ( 2592 × 1520 ), | ||
| 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),1080P ( 1920 × 1080 ), | ||
| 720P ( 1280 × 720 ), D1, CIF, 480 × 240 | ||
| Main Stream | Optical: 60Hz: 5MP/4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 5MP/4MP/2K/3MP/1080P/720P (1~25fps) | |
| Thermal : 60Hz: 256 × 192 (the resolution of output image is 720P) (1~30fps); | ||
| 50Hz: 256 × 192 (the resolution of output image is 720P) (1~25fps) | ||
| Sub Stream | Optical: 60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps) | |
| Thermal : 60Hz: 256 × 192 (the resolution of output image is 720P) (1~30fps); 50Hz: 256 × 192 (the resolution of output image is 720P) (1~25fps) | ||
| Third Stream | Optical: 60Hz: D1/CIF/480 × 240(1~30fps); 50Hz: D1/CIF/480 × 240(1~25fps) | |
| Thermal : 60Hz: 256 × 192 (the resolution of output image is 720P) (1~30fps); 50Hz: 256 × 192 (the resolution of output image is 720P) (1~25fps) | ||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser | |
| Audio Compression | G711A/U | |
| ROI | 8 regions; each ROI to be configured separately | |
| Interfaces | ||
| Network | RJ45 | |
| Video Output | No | |
| Audio | 1CH 3.5mm MIC/LIN in audio input; 1CH built-in speaker | |
| Storage | Built-in micro SD card slot; up to 256GB | |
| Reset | Yes | |
| RS 485 | No | |
| Alarm | 1CH alarm input; 1CH alarm output | |
| Functions | ||
| Temperature Range | -20°C~150°C (-4°F~302°F) | |
| Temperature Accuracy | ±8°C | |
| Temperature alarm | Over temperature alarm, low temperature alarm | |
| Temperature Measurement | 10 rules in total (Point: up to 10, Line: 2, recommended, Area:2, recommended) | |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable | |
| Remote Monitoring | Web browser/NVMS2.X/Mobile APP | |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS | |
| Interface Protocol | ONVIF | |
| Storage | Network remote storage; micro SD card storage | |
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, Cable connection | |
| Intelligent Analytics | Optical: intrusion detection/line crossing detection (human/motor vehicle/non- motor vehicle classification), scene change detection, video exception detection, target counting(human/motor vehicle/non-motor vehicle classification) ,face detection, face capture | |
| Thermal: fire detection, temperature exception alarm, intrusion detection/line crossing detection (human/motor vehicle classification) | ||
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction | |
| Sound&Light Warning | White light flashing alarm and sound alarm supported | |
| PoE | Yes , IEEE802 .3 af, class0 | |
| IR Distance | 20~ 30m | |
| Protection Grade | IP66 | |
| Others | ||
| Power Supply | DC12V / PoE | |
| Power Consumption | < 9W | |
| Operating Environment | Humidity: less than 95 % (non-condensing) | |
| -30 °C ~ 60 °C (-22°F~140°F) | ||
| Certificate | CE, FCC | |
| Environment Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |
| Dimensions ( mm ) | 217.8 × 80.5 × 80.3 | |
| Weight ( net ) | Approx. 0.7KG | |
| Installation | Ceiling mounting; Wall mounting | |
