Descripción

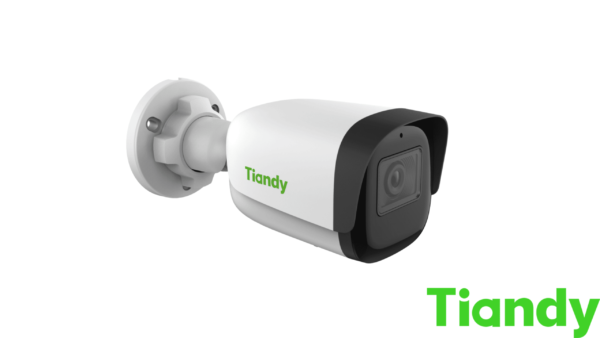

CAMARA IP TIANDY BULLET 5MP 2.8mm STARLIGHT TC-C35WS
Las cámaras bullet se utilizan para un uso exterior, ya que tienen una protección que las hacen resistentes a adversidades externas como la lluvia o el polvo. Aunque obviamente también pueden ser instaladas en el interior.
En este caso, este producto maneja la tecnología IP para su funcionamiento, con un lente de 2.8mm para manejar una visión de 90 grados aprox.
Por otro lado, las cámara tipo bullet suelen apuntar a una única dirección fija, otro de los motivos por los que se suelen instalar más bien en el exterior y espacios abiertos. Pudiéndose colocar tanto en techos como en paredes.
Camera | |
Image Sensor | 1/2.8″ CMOS |
Signal System | PAL/NTSC |
Min. Illumination | Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR |
Shutter Time | 1s to 1/100,000s |
Day & Night | Dual IR Cut Filter with Auto Switch |
Wide Dynamic Range | 120dB |
Angle Adjustment | Bracket, pan 0~360°, tilt 0~75°, roate 0~360° |
Lens | |
Lens Type | Fixed |
Focus | 2.8mm/4mm |
Lens Mount | M12 |
Aperture | F1.6, Fixed |
FOV | Horizontal field of view: 95.6° (2.8mm)/77.9° (4mm) |
Illuminator | |
IR LEDs | 2 |
IR Range | Up to 50m |
Wavelength | 850nm |
White/Warmlight LEDs | N/A |
Compression Standard | |
Video Compression | S+265/H.265/H.264/M-JPEG |
Video Bit Rate | 32Kbps~16Mbps |
Audio Compression | G.711A/G.711U/ADPCM/AAC |
Audio Bit Rate | 8K~48Kbps |
Image | |
Max. Resolution | 2592×1944 |
Main Stream | PAL: 25fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 50fps (1920×1080, 1280×720) |
NTSC: 30fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 60fps (1920×1080, 1280×720) | |
Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
Third Stream | PAL: 25fps(1920×1080, 1280×720, 704×576, 704×288, 640×360, 352×288)
NTSC: 30fps(1920×1080, 1280×720, 704×480, 704×240, 640×360, 352×240) |
Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
Image Enhancement | BLC/3D DNR/HLC/Corridor Format |
ROI | Support 8 fixed regions of coding |
OSD | 16×16, 32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions |
Picture Overlay | Yes |
Privacy Mask | Yes, 4 regions |
Smart Defog | Yes |
Feature | |
Alarm Trigger | Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception, Voltage Abnormal |
Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap, Face Capture(Face Detection), Safety Helmet Detection, Human/Vehicle Classification |
Early Warning(EW) | N/A |
Network | |
ANR | Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP, NFS |
System Compatibility | ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P |
Remote Connection | ≤7 |
Client | Easy7, EasyLive |
Web Version | Web6 |
Interface | |
Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
Audio | 1/1, Mic in |
Alarm | 1/1 |
Reset Button | Yes |
On-board storage | Built-in Micro SD card slot, up to 512 GB |
General | |
Firmware Version | – |
Web Client Language | 15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
Operating Conditions | -40℃~65℃, 0~95% RH |
Power Supply | DC12V±25%/PoE |
Power Consumption | MAX: 6W (12V) MAX: 7W (PoE) |
Protection | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
Heater | N/A |
Dimensions | 160.8×68×74.5mm (6.33×2.68×2.93inch) |
Weight | 0.50Kg (1.10lb) |
