Descripción
GRABADOR NVR 64 CANALES HASTA 12 MP H.265 SALIDA 4K SOPORTA RAID
Modelo TD-3364B8
OS | Embedded Linux | |
Video | Network Input | 64 CH IPC input |
Incoming Bandwidth | 320Mbps | |
Outgoing Bandwidth | 320Mbps | |
Network Input Resolution |
12MP/ 8MP/ 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ | |
720P/960H/D1/CIF | ||
Output | HDMI 1 : 3840 × 2160@60fps / 3840 × 2160@30fps / | |
1920 × 1080 /1280×1024 / 1024 × 768 | ||
HDMI 2: 1920 × 1080/ 1280×1024 / 1024 × 768 | ||
VGA × 1: 1920 × 1080 / 1280×1024 / 1024 × 768 | ||
Compression | H.265S/H.265+/H.265/H.264 | |
Multi-screen display | 1/4/6/8/9/13/16/25/32/36/64 | |
Audio | Network Input | 64 CH IPC audio input |
2-way Audio | RCA × 1 | |
Local Output | RCA × 1 | |
Compression | G.711(U/A) | |
Record | Record Stream | Dual stream recording |
Resolution | 12MP@20fps; 8MP/ 6MP/5MP/4MP/3MP/1080P/1280×1024/ | |
960P/ 720P/960H/D1/CIF@30fps(NTSC)/25fps(PAL) | ||
Mode | Manual/timed/motion/sensor/POS/AI recording | |
Playback | Simultaneous Playback | Max 16 CH |
Search | Time slice / time / event / tag / smart search | |
Smart Search | Highlighted color to display the camera record in a certain | |
period of time, different colors refers to different record events | ||
Function | Play, pause, FF, FB, digital zoom, etc. | |
Decoding Capability | Live View/ Playback | 1CH 12MP / 4 CH 5MP / 9 CH 720P/ 16CH 720P |
Alarm | Mode | Manual, sensor, motion, exception, smart events |
Input | 8 CH local alarm input; supports IPC alarm input | |
Output | 4 CH | |
Triggering | Record, snapshot, buzzer, preset, e-mail, etc. | |
Video Structure Analysis | Human/Vehicle Classification | Yes |
Other Functions | Fisheye | Supports fisheye dewarping via Web Client and mobile APP |
Plate Recognition | Yes | |
Network | Interface | RJ 45 10 / 100 / 1000 Mbps × 2 |
Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc. | |
Client Connection | Max.20 users access | |
Mobile Device | OS | iOS, Andriod |
Storage | HDD Interface | SATA×8, up to 8TB per HDD; E-SATA×2 |
RAID | RAID0, RAID1, RAID5, RAID6, RAID10 | |
Backup | Local Backup | U disk, USB mobile HDD |
Network Backup | Yes | |
Port | USB | USB2.0 × 2, USB3.0 × 1 |
RS 485 | Yes (full-duplex) ; connectors for PTZ and keyboard | |
Remote Controller | Yes | |
Others | Power Supply | ATX 250W |
Consumption | ≤ 30W ( without HDD ) | |

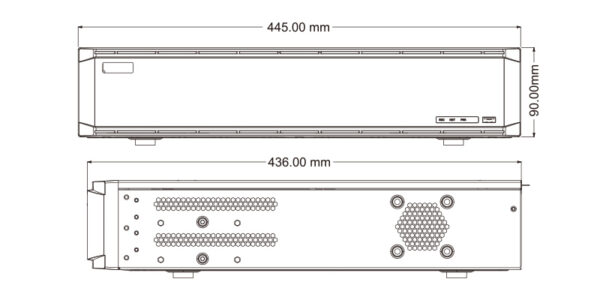

Dimensions (mm) | 445 × 436 × 90 (W × D × H) | |
Working Environment | -10 ~ 50 ℃,10% ~ 90% humidity | |
Certificate | CE, FCC | |
Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE |
